Overview:

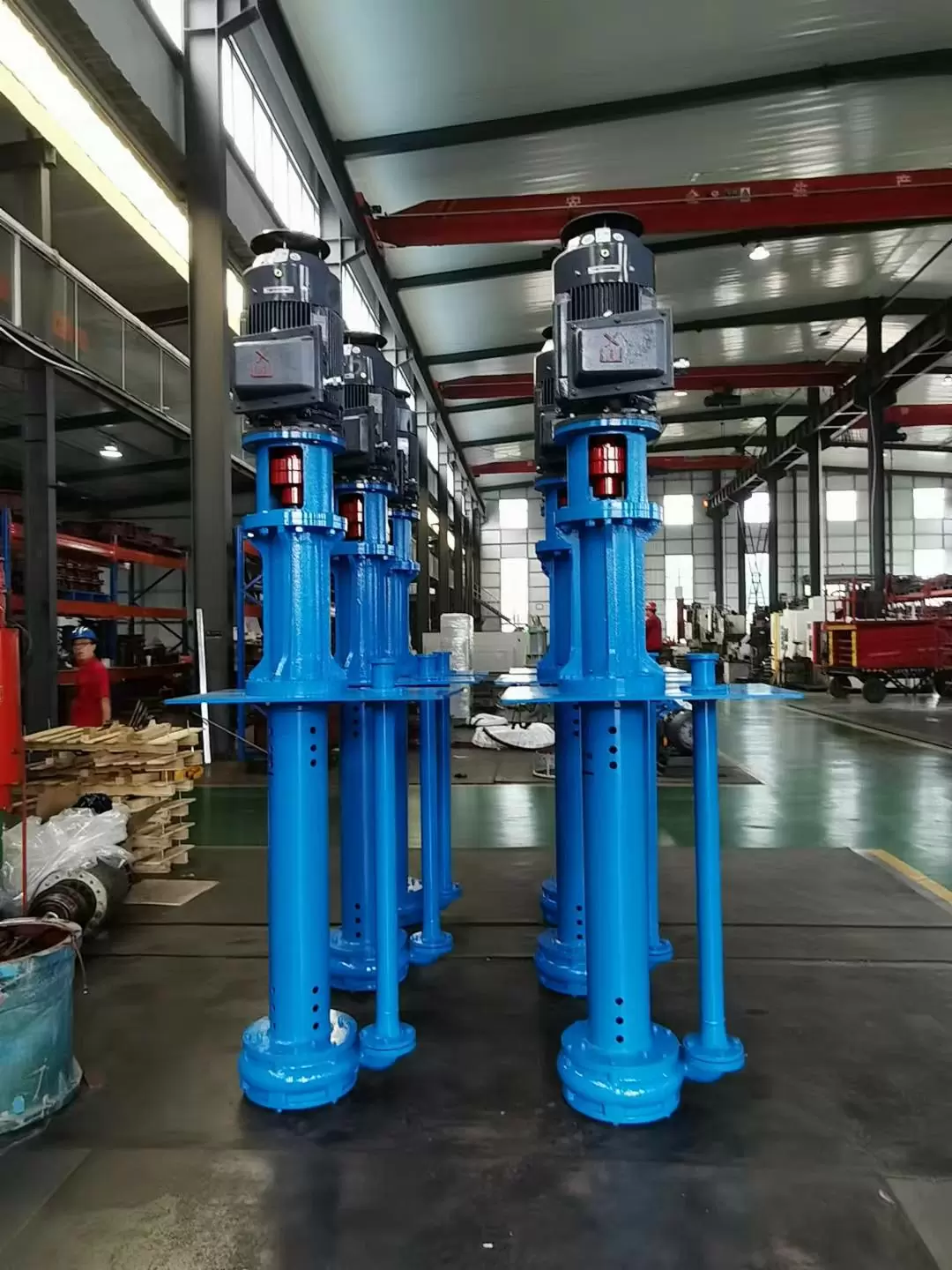

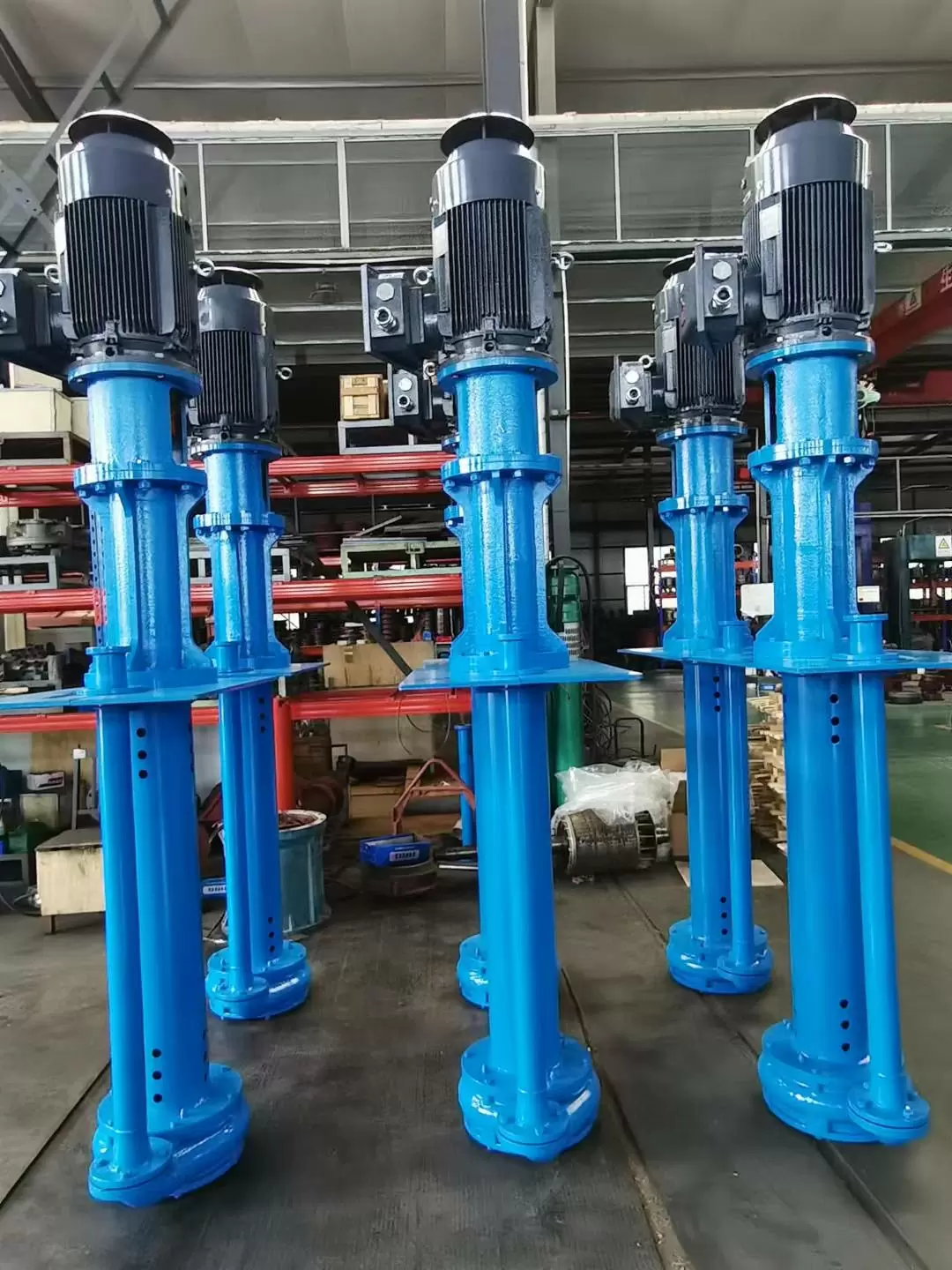

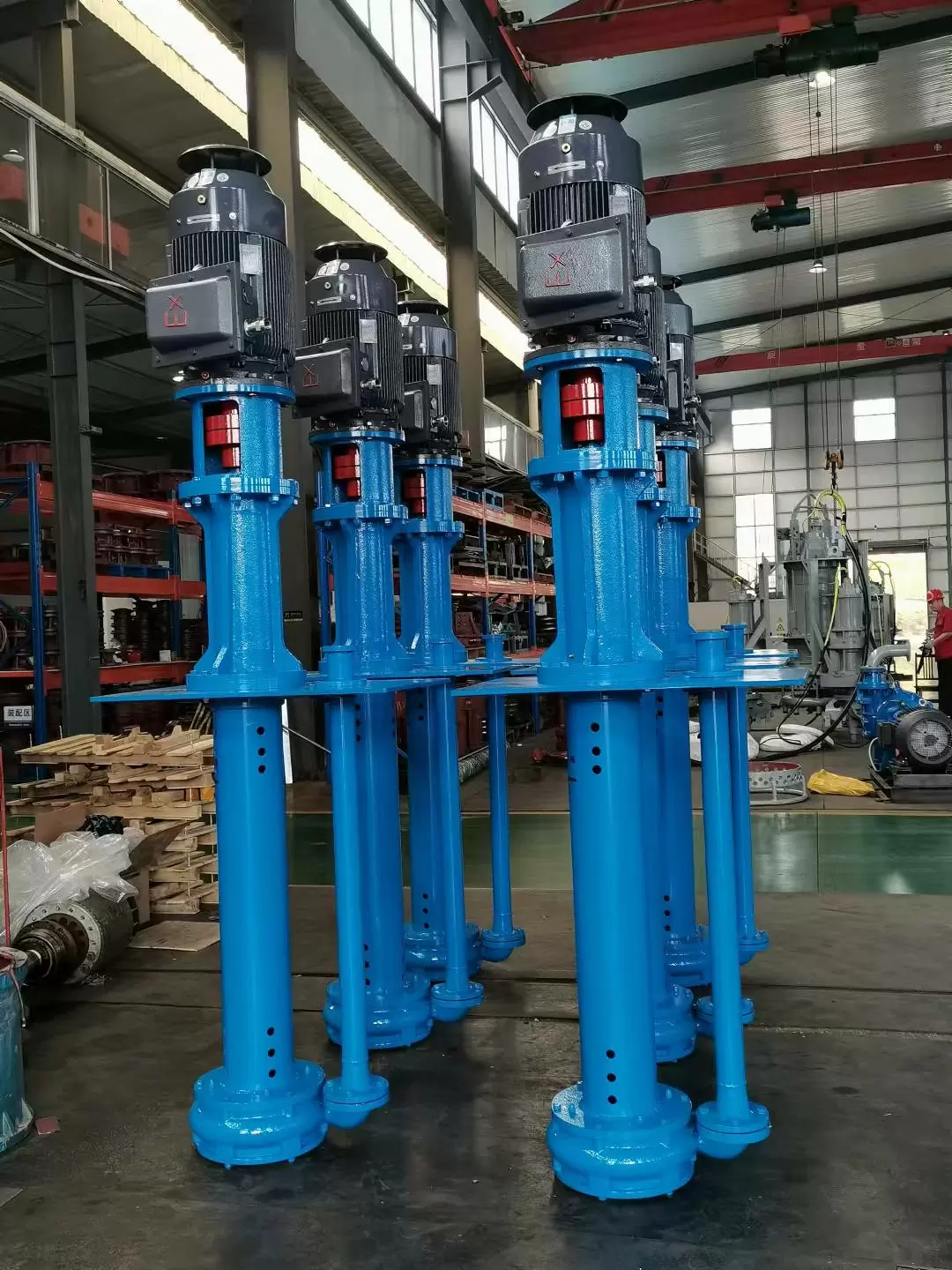

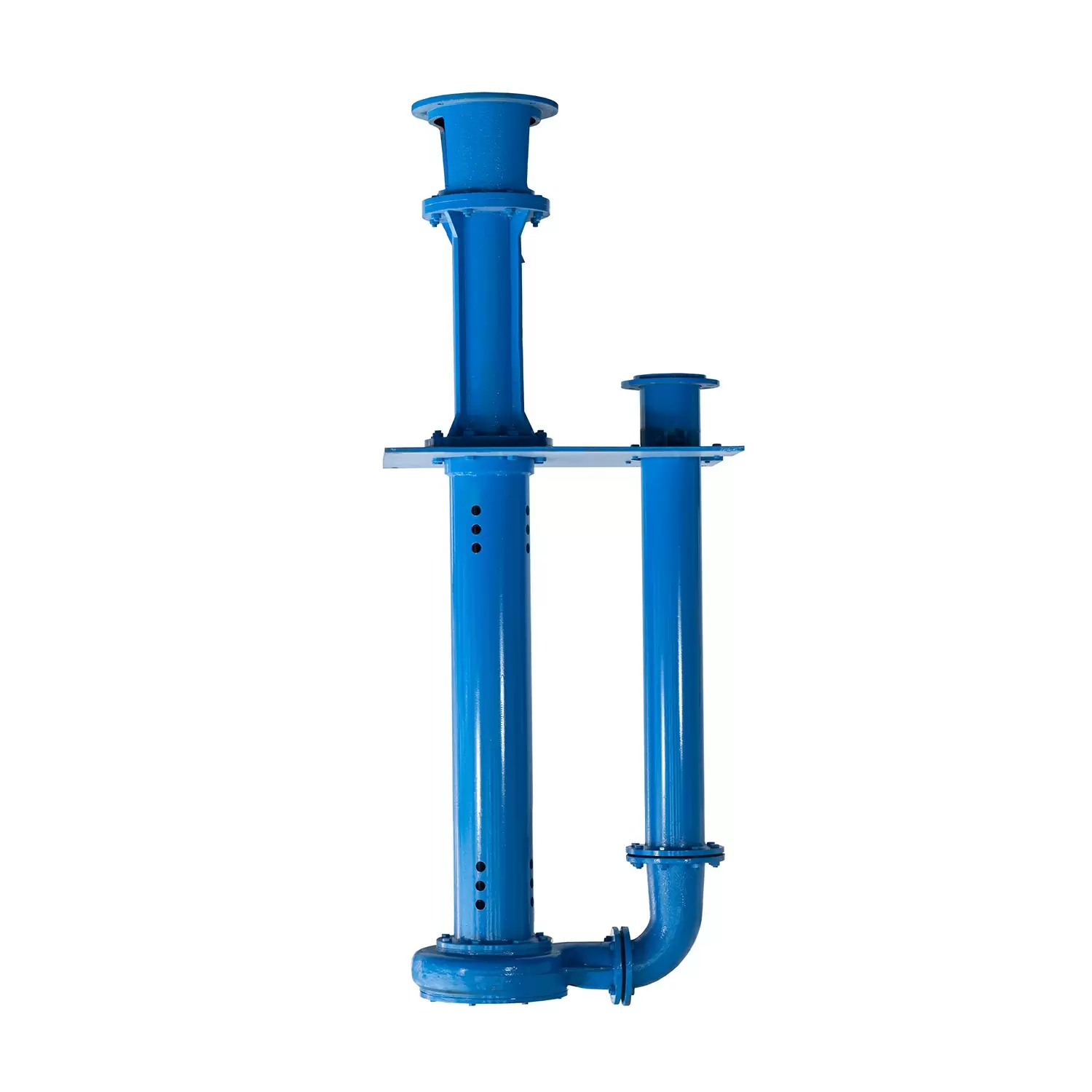

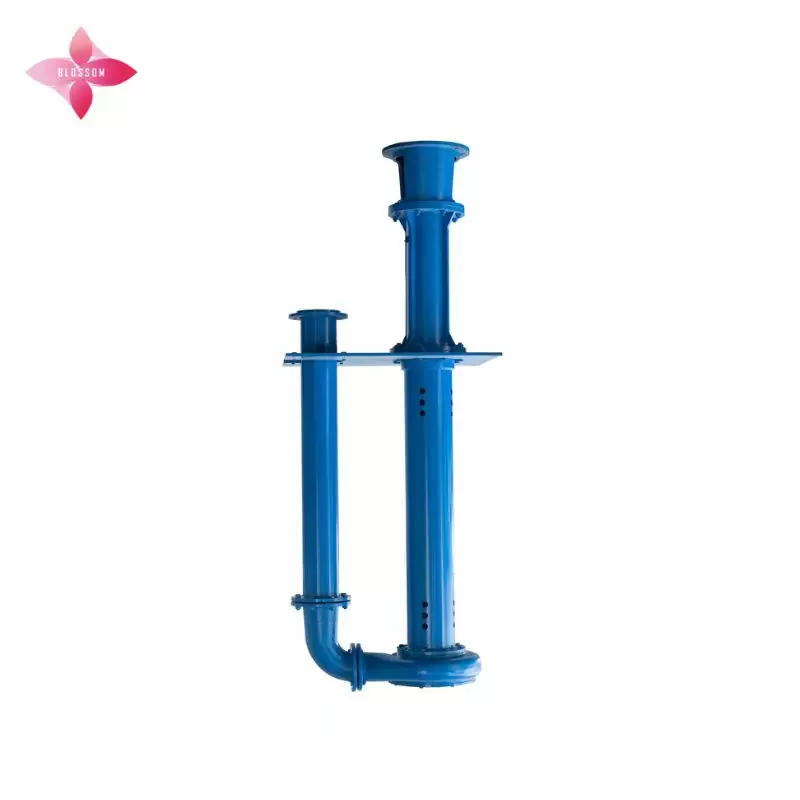

YZ Model Submersible Slurry Pump is a vertical but only suction cantilever centrifugal pump structure. The impeller is a semi-opened vane, and stirring blades are provided at the extension of the suction side of the impeller.

Two series of pumps are mainly used in environmental protection, municipal engineering, thermal power plants, gas coking plants, oil refineries, steel mills, mining, paper industry, cement factory, food factory, printing and dyeing industries to suck thick liquid, heavy oil, oil residue, dirty liquid, mud, mortar, sand and urban sewage drains flowing sludge, as well as liquid containing coal ash slag. Can also be used as a chemical, pharmaceutical and other industries suction containing mud and sand slag fluid and corrosive liquid.

Structure declaration:

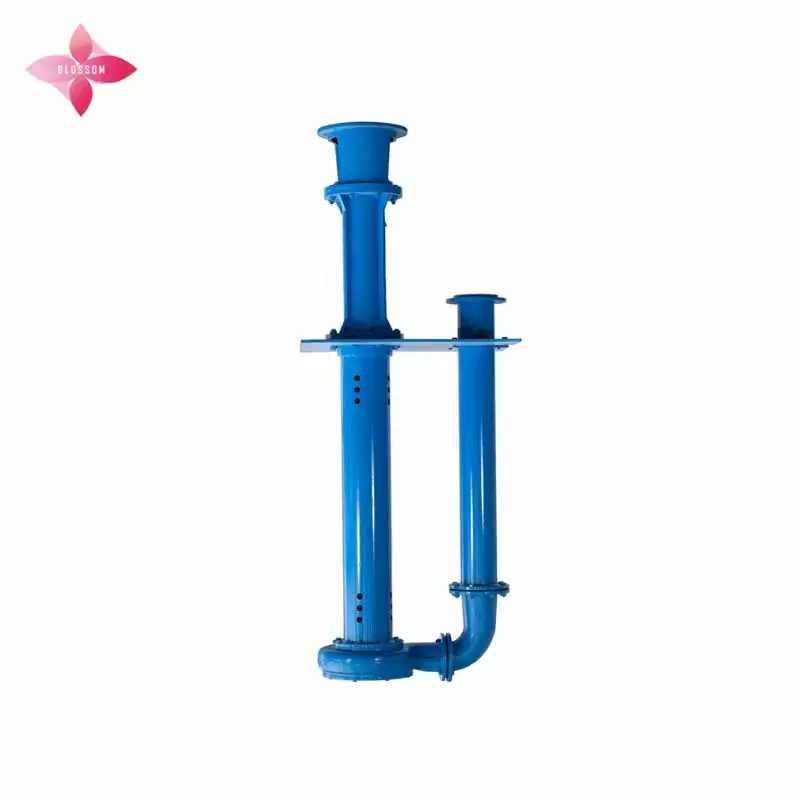

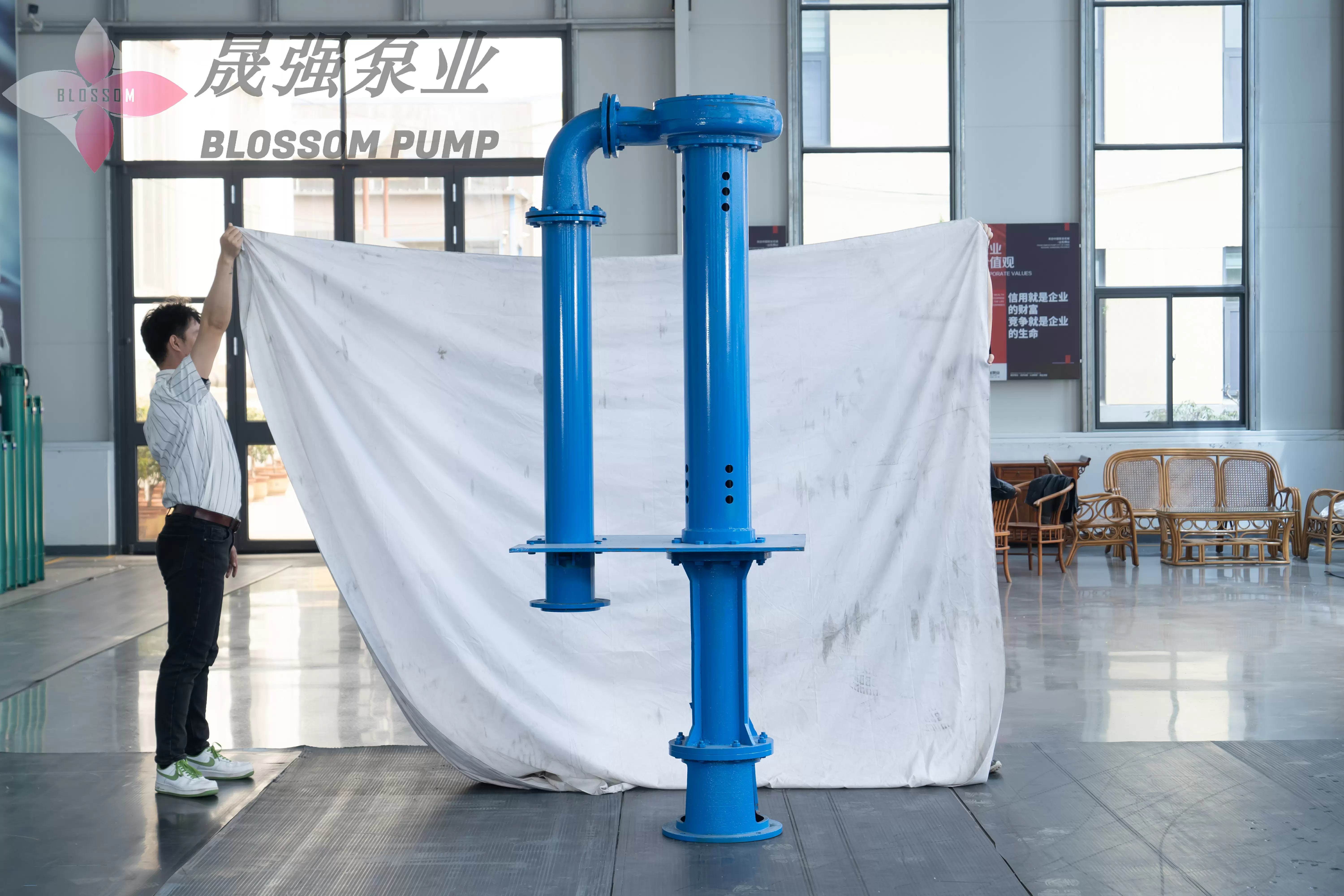

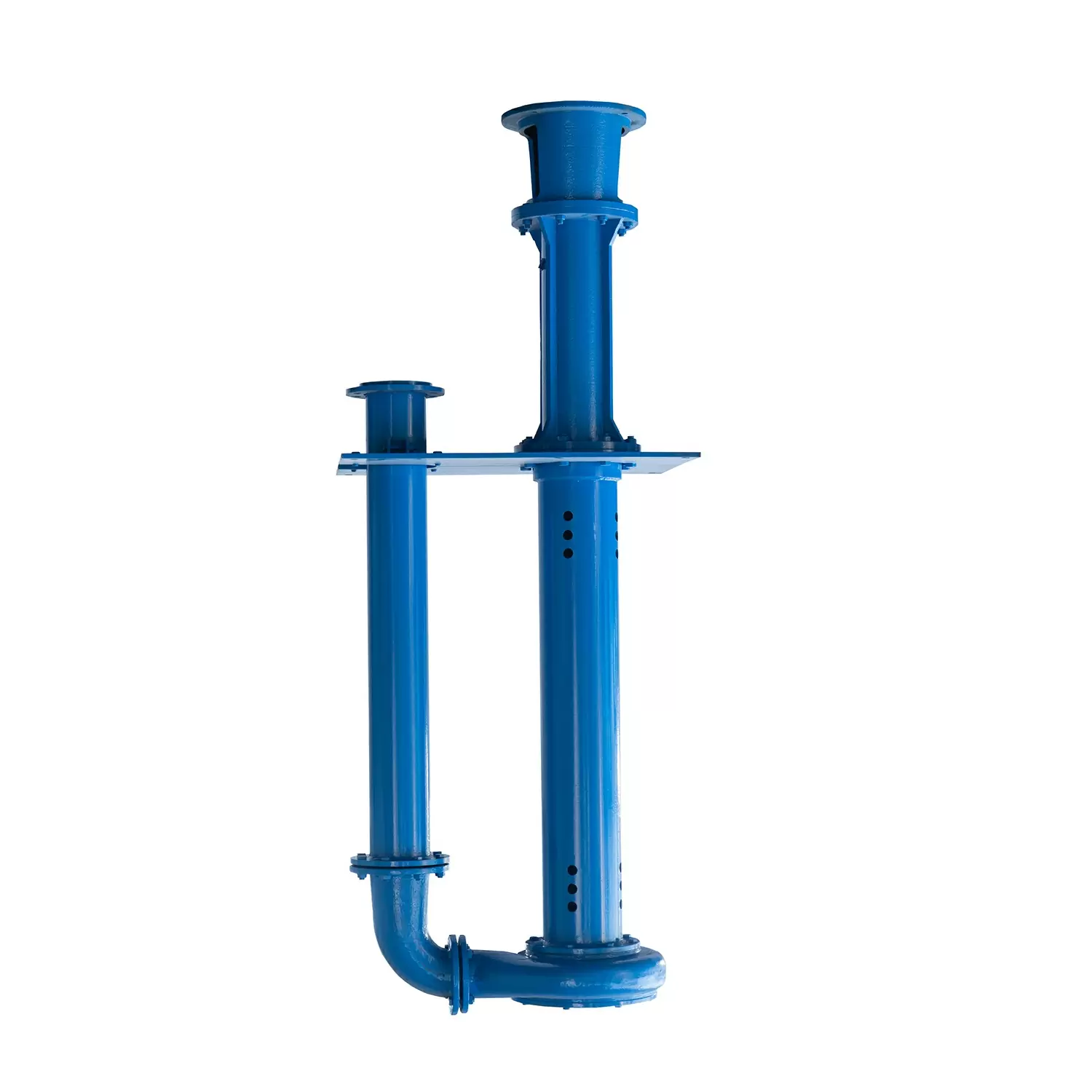

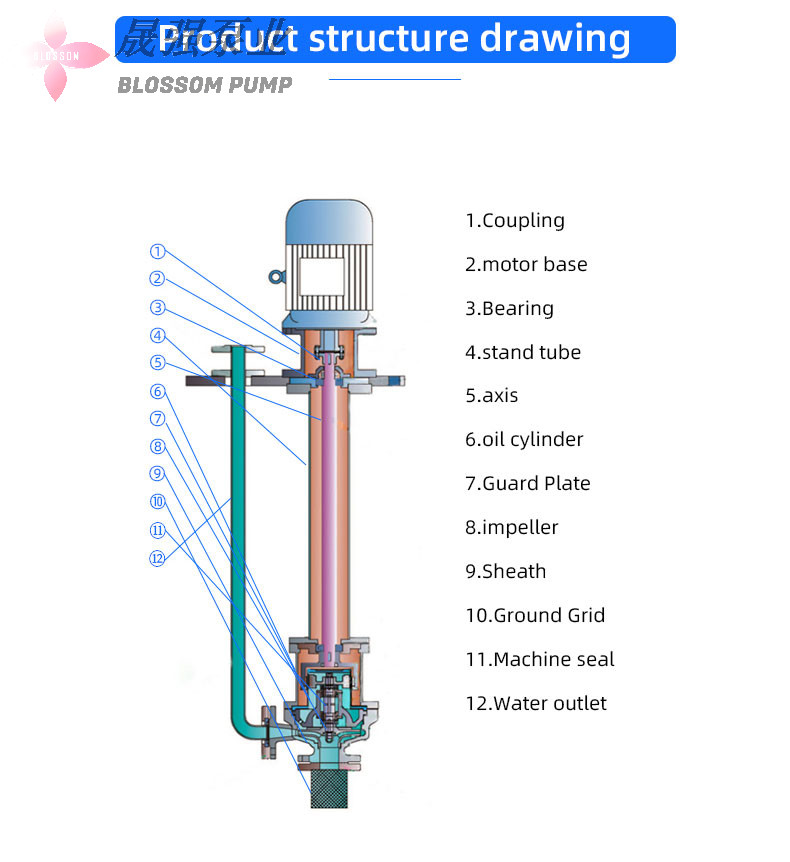

YZ pump is a single counter-level, single suction cantilever structure, with bearing seat, supporting seat, connecting pipe connected hydraulic parts of the pump, the liquid is discharged from the liquid pipe components, the impeller of the pump is a semi-opened impeller, impeller blade inlet extension is provided with mixing blades, the main characteristics of the pump is in the liquid part of the pump shaft, there is enough stiffness, impeller, pump shell between the bearing, do not use shaft seal, A medium containing a larger concentration of fixed particles can be transported. The length of the pump under the liquid insertion is between 800-2000, with suction pipe if necessary. The shaft seal uses a larger pump inserted into the liquid operation, without shaft seal, transmission by a vertical motor installed on the motor support and support seat, with a coupling connected to the pump.

Specification:

Video:
