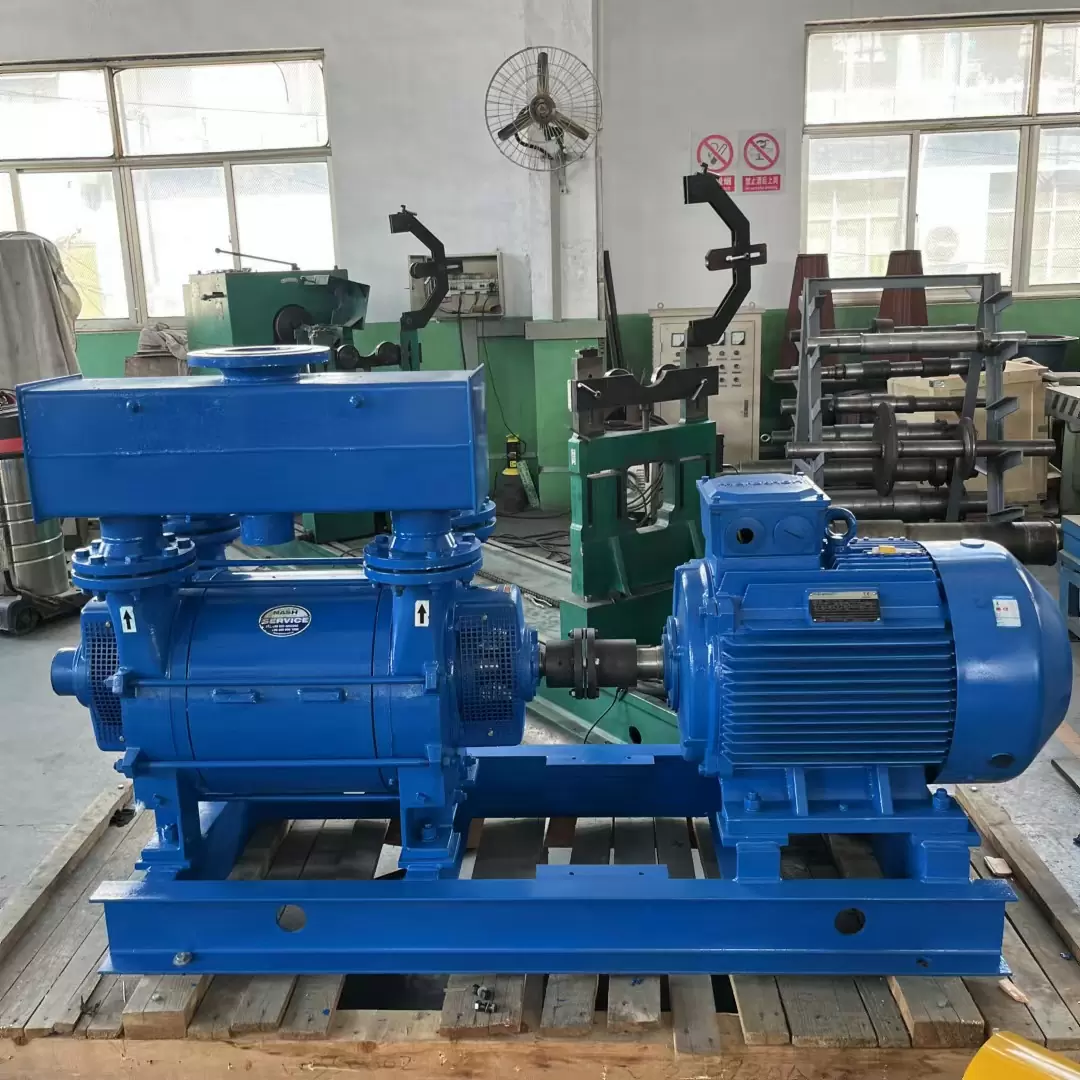

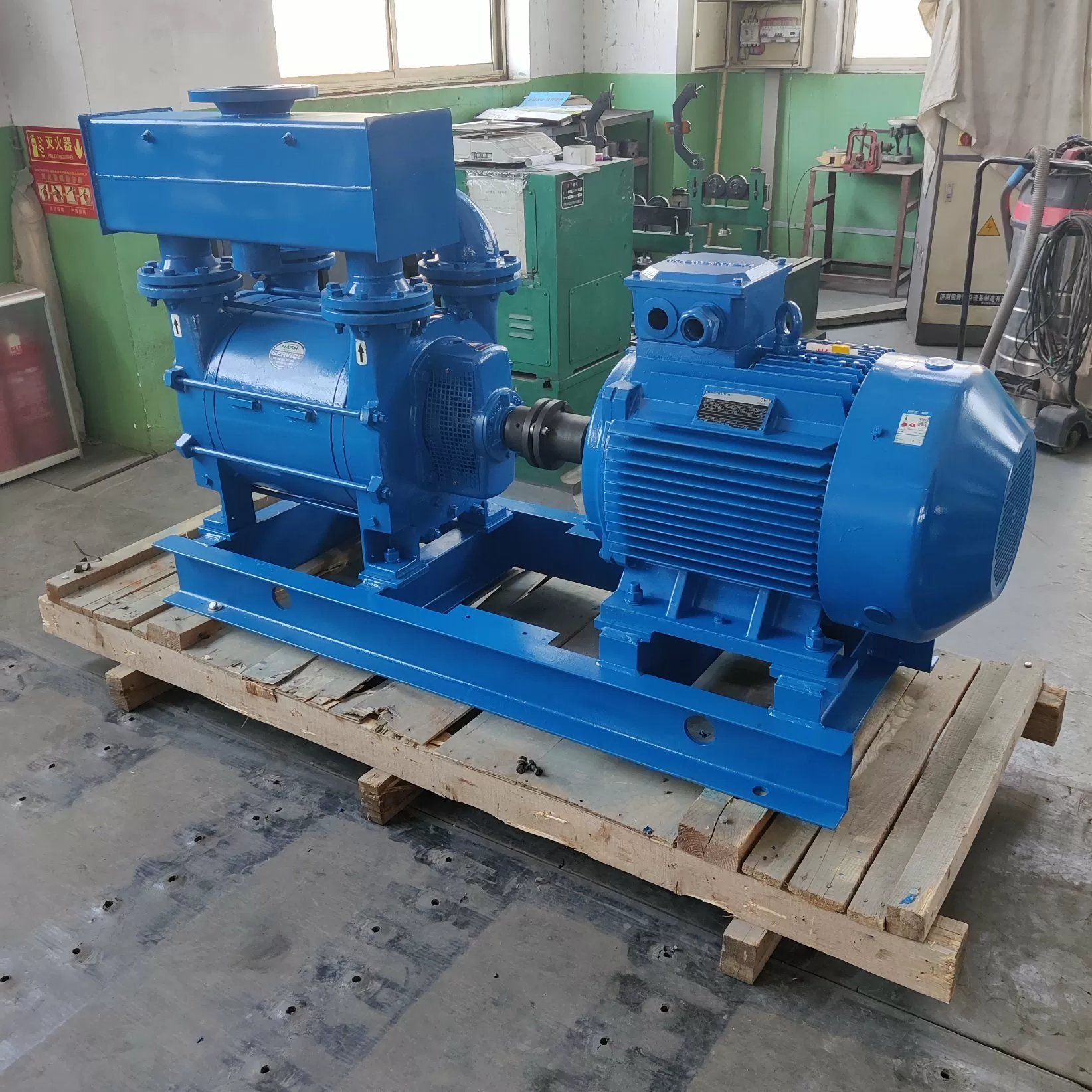

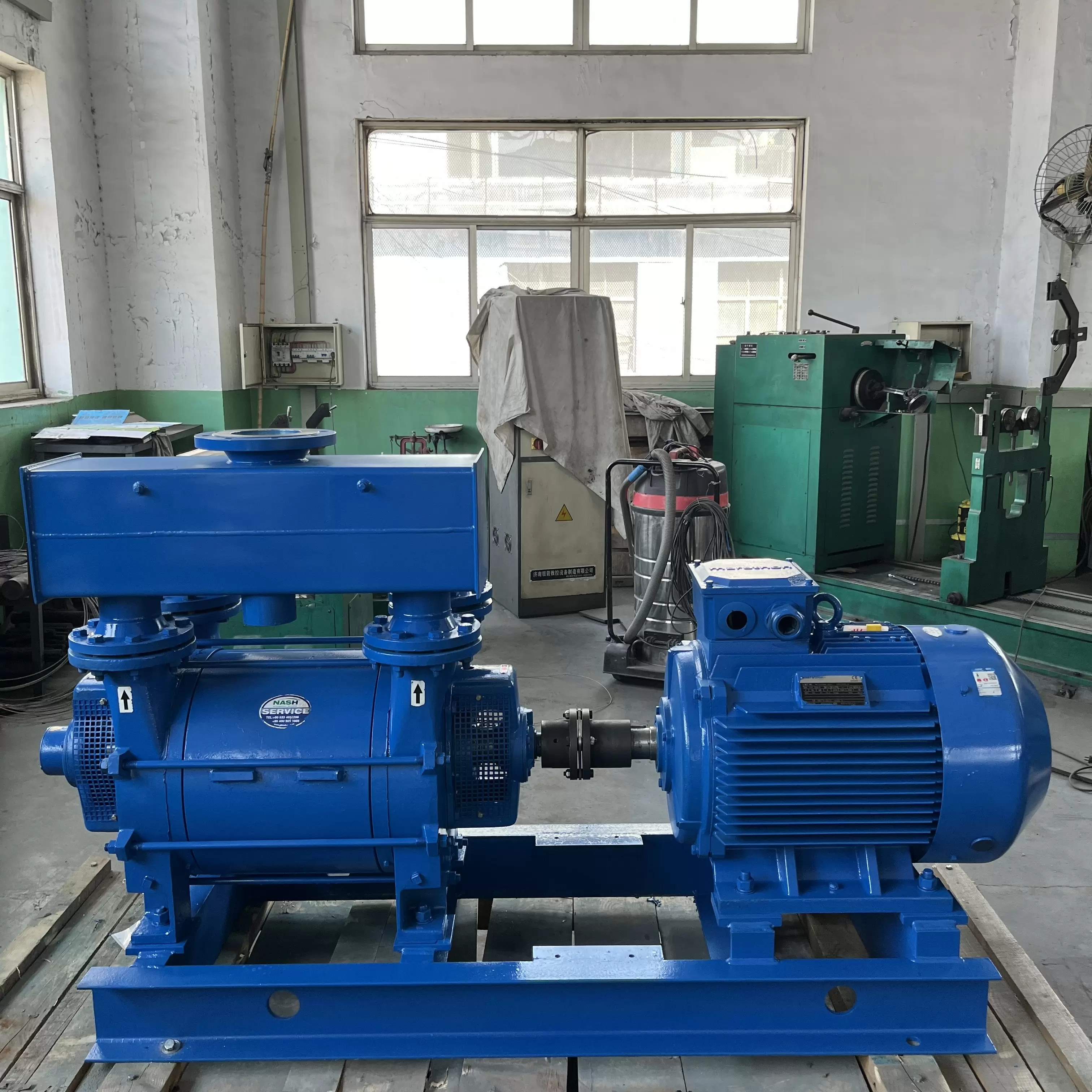

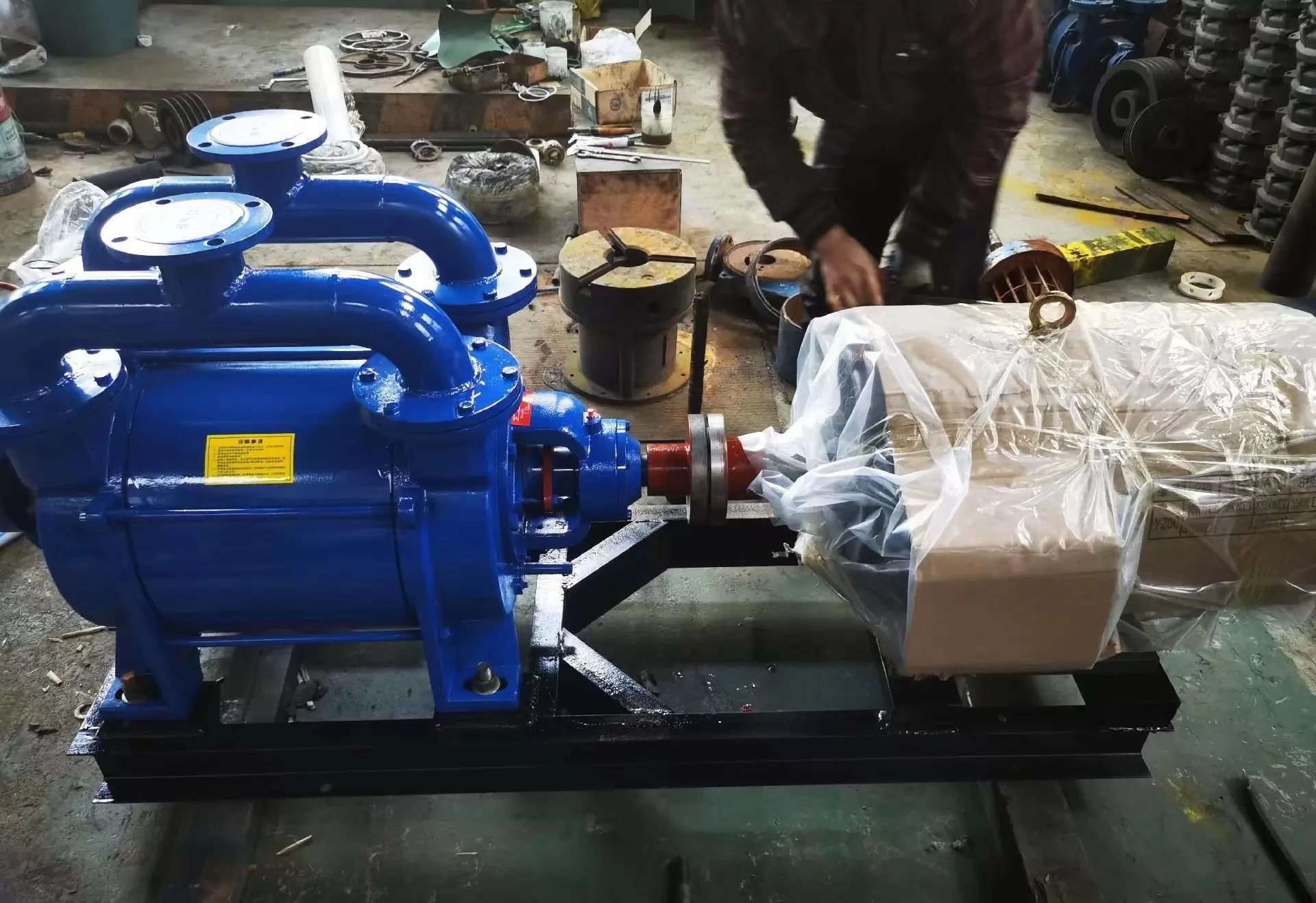

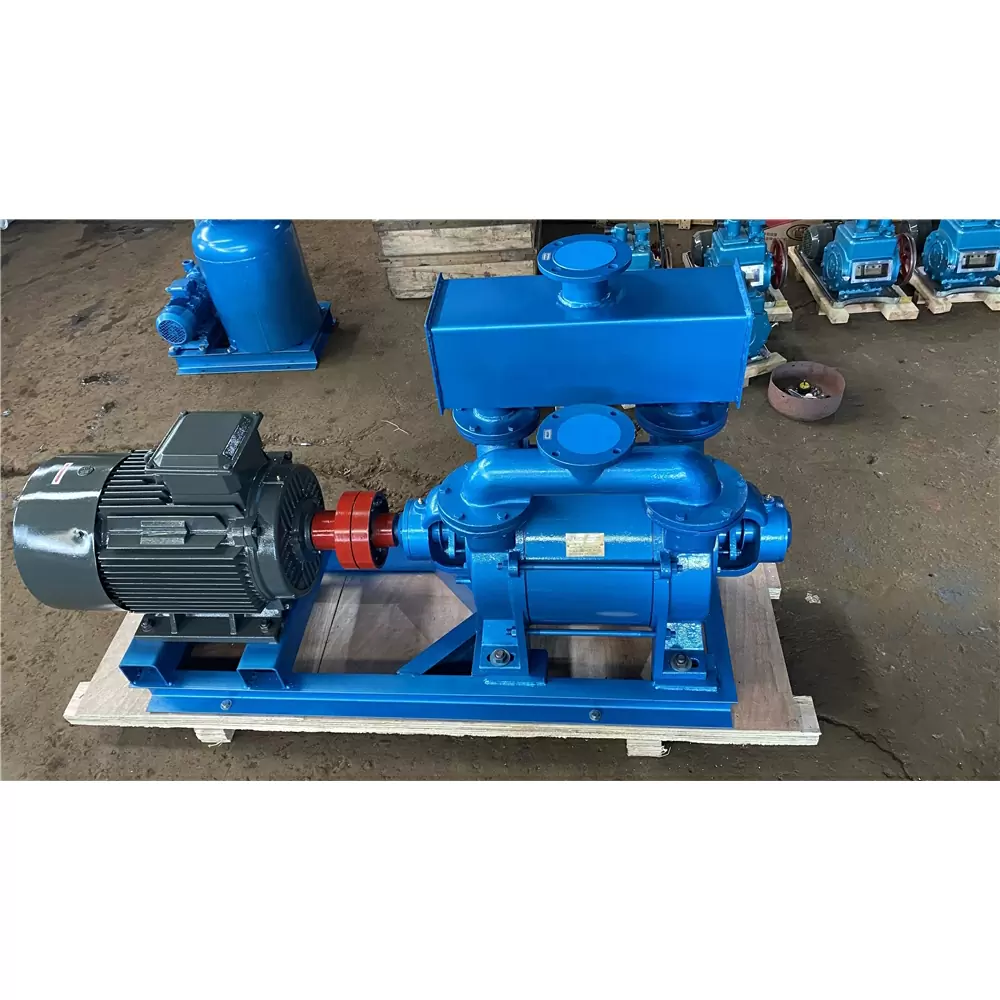

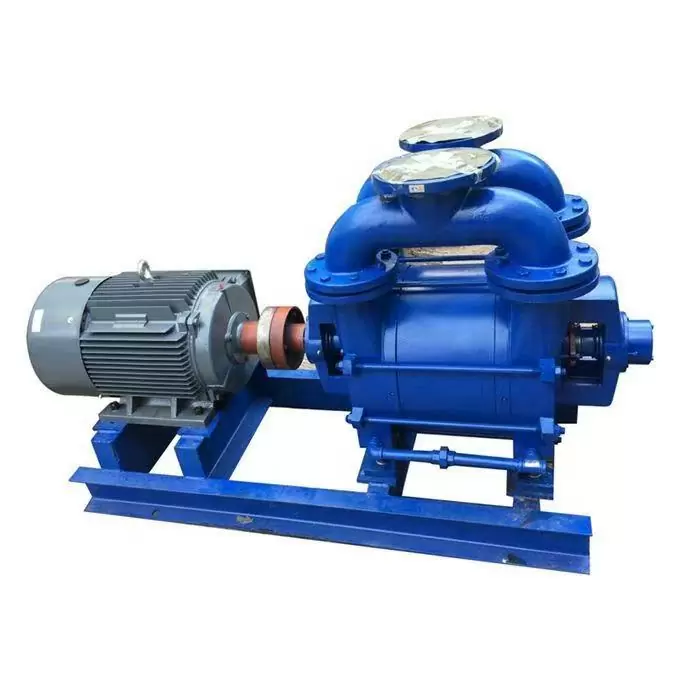

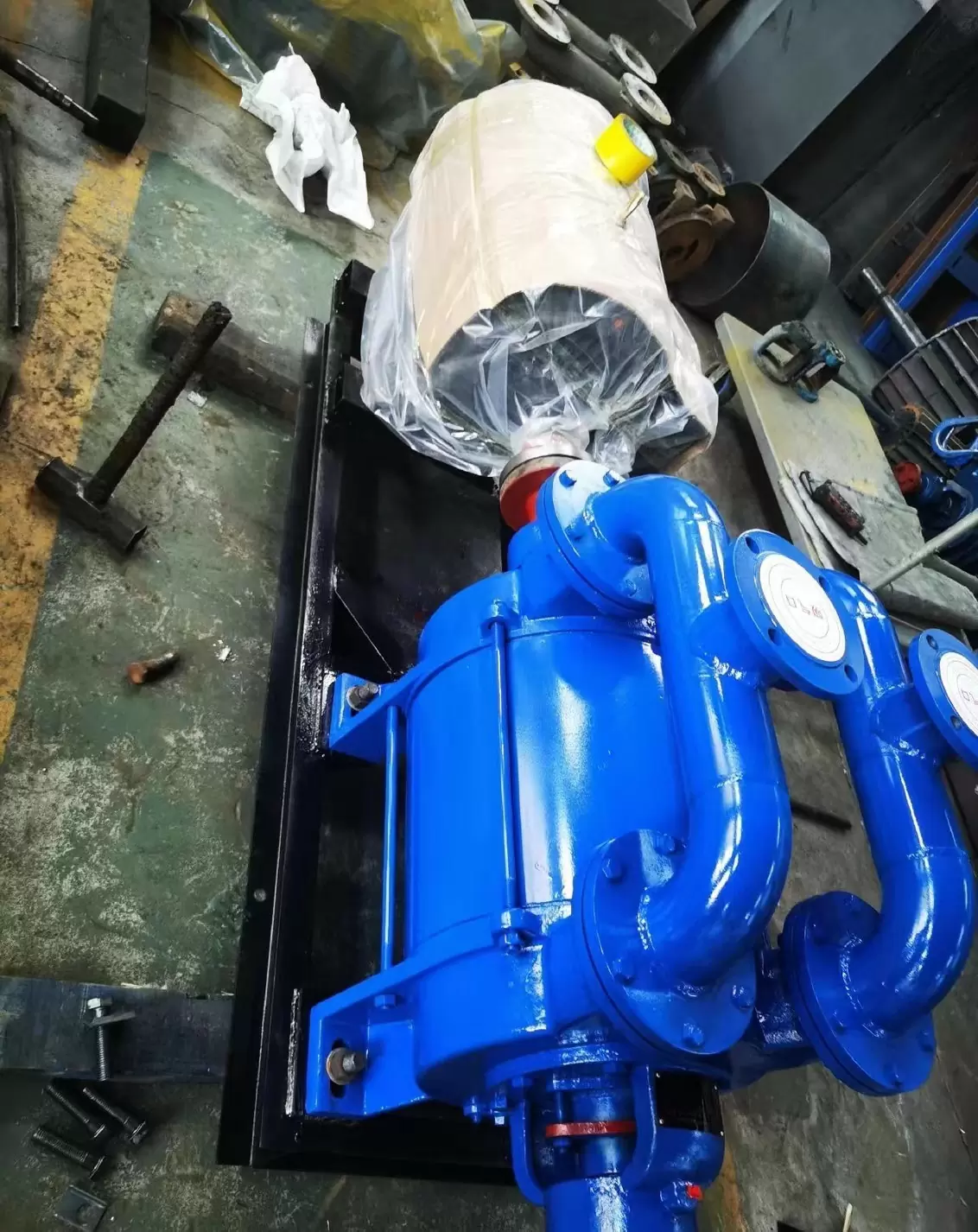

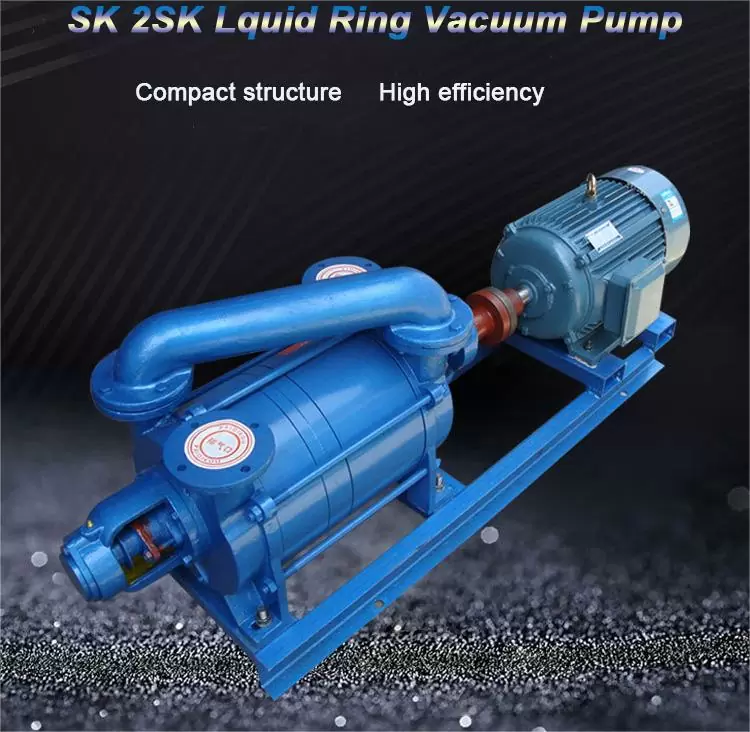

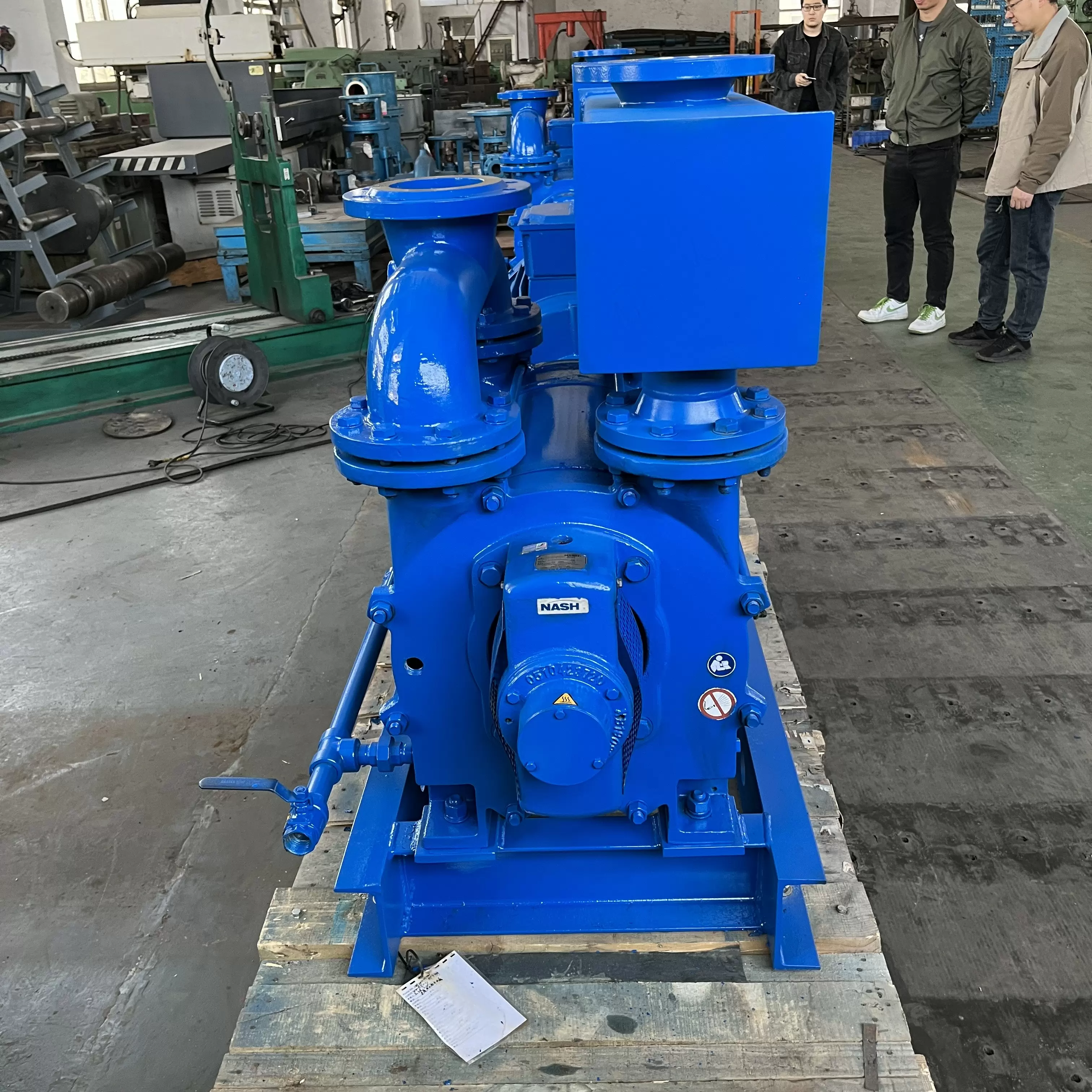

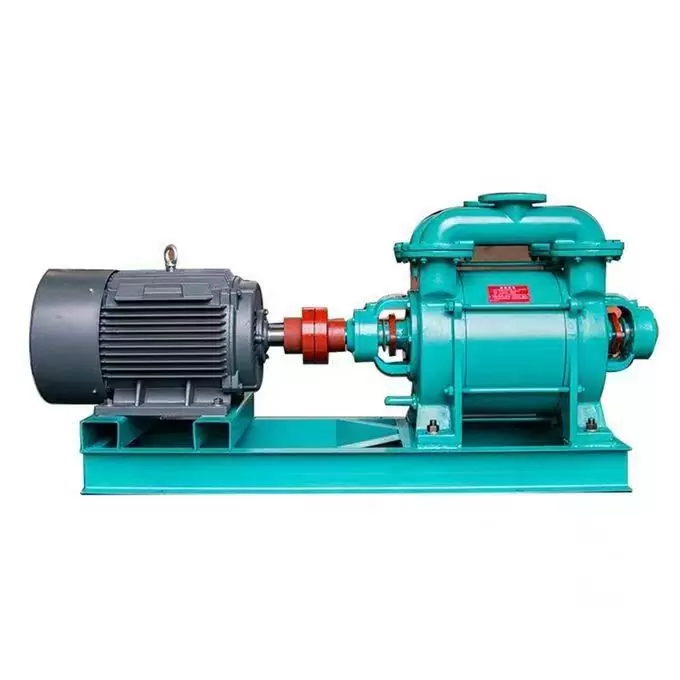

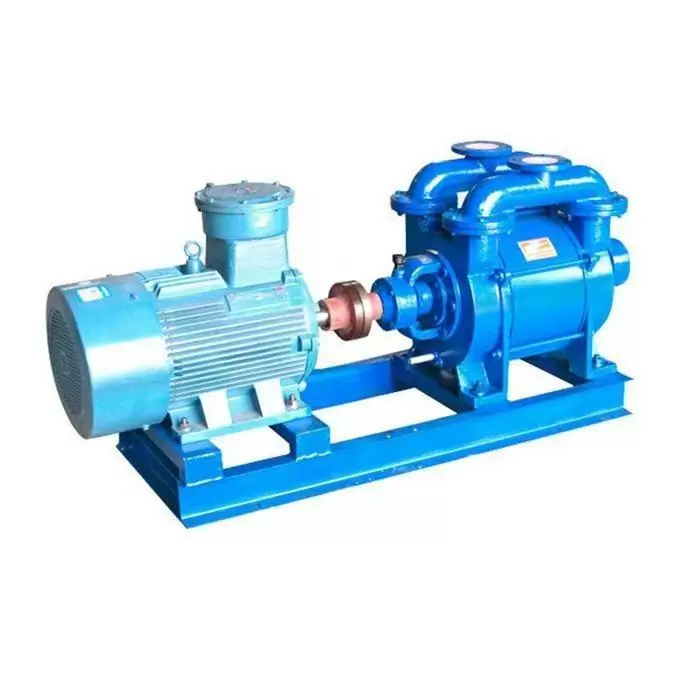

SK series water ring vacuum pump

Main parameter


Pumping capacity: 0.135-108m³/min

Limit pressure of vacuum pump: -0.087--0.093Mpa

Motor power: 0.55-185kW

Speed: 490-2860rpm

Catalog


Overview:

SK series water ring vacuum pump and compressor is used to suck or compress air and other non-corrosive, insoluble in water, does not contain solid particles of the gas body, in order to form a vacuum and pressure in a closed container, suction gas allowed to mix a small amount of liquid.

SK water ring vacuum pumps and compressors are widely used in machinery, petrochemical, pharmaceutical, food, sugar industry and electronic fields. Because in the working process, the gas compression process is isothermal, so in the compression and patting explosive gas, not prone to danger, so its application more widely.


Specification:

ModelPumping capacity(m³/min)Limit pressure of vacuum pumpMotor power (KW)Pump RPM(r/m)Compressor pressureCaliber (mm)
Max.Suction pressure is 0.041 MPammHgMPaVacuum pumpCompressorInOut
SK-0.150.150.135-650-0.0870.5512860/G3/4"G3/4"
SK-0.40.40.36-650-0.0871.5128601G1"G1"
SK-0.80.80.72-650-0.0872.2128601G1"G1"
SK-1.5B1.51.35-680-0.091412860/G1 1/4"G1 1/4"
SK-1.51.51.35-680-0.0914414400-0.17070
SK-332.8-700-0.0935.57.514400-0.17070
SK-665.4-700-0.093111514600-0.18080
SK-998.1-700-0.09315229700-0.18080
SK-121210.8-700-0.09318.530970 9800-0.18080
SK-151513.5-700-0.09330459800-0.18080
SK-202018-700-0.09337557400-0.1150150
SK-303027-700-0.09355757400-0.1150150
SK-424237.8-700-0.0937517401150150
SK-606054-700-0.0939015901250250
SK-858576.5-700-0.09313215901250250
SK-120120108-700-0.09318514901300300
